Appareil de forage de surface

Une foreuse carottée de surface est un équipement de forage utilisé principalement dans l'exploration minière et les études géotechniques pour prélever des carottes à la surface de la Terre. Contrairement aux autres méthodes de forage, le carottage consiste à extraire des échantillons cylindriques de roche ou de sol afin d'étudier les conditions géologiques souterraines.


Avantages du carottage de surface

Échantillons de haute qualité : Fournit des carottes détaillées et non contaminées, essentielles à une analyse géologique et géotechnique précise.

Pénétration profonde : Capable de forer à des profondeurs importantes, atteignant souvent plusieurs centaines de mètres.

Polyvalence : Les foreuses de surface peuvent être utilisées dans diverses conditions géologiques, notamment dans les roches dures et les sols.


La foreuse de surface est un outil essentiel pour prélever des carottes de haute qualité à la surface de la Terre. Sa conception, incluant la foreuse, le carottier et l'alimentation électrique, garantit un forage et un prélèvement d'échantillons efficaces. Elle est largement utilisée dans l'exploration minière, les études géotechniques et les études environnementales, fournissant des données précieuses pour diverses applications.

En savoir plus

  • JCDRILL JCD150 Crawler Hydraulic Surface Diamond Core Drilling Mining Drilling Rigs

    JCDRILL JCD150 Crawler Hydraulic Surface Diamond Core Drilling Mining Drilling Rigs

    Hole Depth: 200,150,120 m

    Dimension:2750*1500*1650 mm

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD150 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique.


  • JCD300 Hydraulic Diamond Core Drilling Rig

    JCD300 Hydraulic Diamond Core Drilling Rig

    Hole Diameter: 65-213mm

    Max. Drilling Depth:300m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD300 core drilling rig is a kind of lightweight fully hydraulic core drilling machine for geological exploration, and it is portable. It is mainly used in complex terrains and inaccessible areas, and it is especially appropriate for diamond wireline core drilling technology.

    Its main components include diesel power drill, hydraulic system, control system, main winch, wireline winch, power head, feeding system, feed system, and gripper (holder) for well mouth.


  • JCD300S  Exploration Mine Diamond Core Drilling Rigs Machine

    JCD300S Exploration Mine Diamond Core Drilling Rigs Machine

    Drilling Depth: 300,200,80 m

    Core Diameter:42.1/56.1/71.3 mm

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

     JCD300S Full Hydraulic Portable Drilling Rig is a kind of light weight core drilling rig designed for geological exploration in remote area difficult to enter.

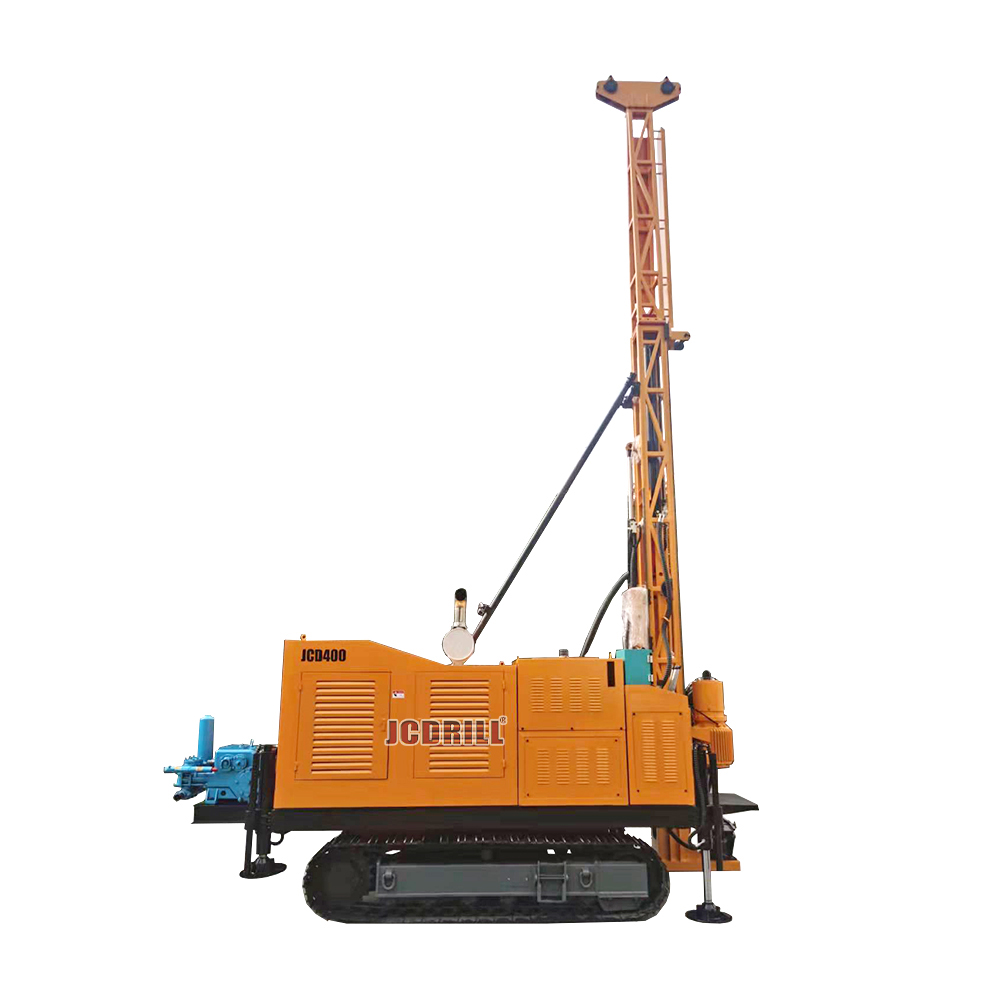

  • JCD400 Diamond core drilling mining rig for ore sample Full Hydraulic Portable Drilling Rig

    JCD400 Diamond core drilling mining rig for ore sample Full Hydraulic Portable Drilling Rig

    Drilling Depth: 400 300 100 m

    Diameter:14 mm

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD400 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote areas difficult to enter. It is mainly suitable for diamond drilling with the wireline coring technique.

  • JCD600 Full Hydraulic Crawler Mounted Diamond Borehole Core Mining Drilling Rig Machine

    JCD600 Full Hydraulic Crawler Mounted Diamond Borehole Core Mining Drilling Rig Machine

    Drilling Diameter: 60.1/75.7/95.5 mm

    Drilling Depth:600 400 260 m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD600 core drilling rig is a kind of lightweight fully hydraulic core drilling machine for geological exploration, and it is portable. It is mainly used in complex terrains and inaccessible areas, and it is especially appropriate for diamond wireline core drilling technology.

    Its main components include diesel power drill, hydraulic system, control system, main winch, wireline winch, power head, feeding system, feed system, and gripper (holder) for well mouth.


  • JCD800 Full Hydraulic Diamond Core Drilling Rig Supplier

    JCD800 Full Hydraulic Diamond Core Drilling Rig Supplier

    Hold Diameter: 121mm

    Drilling Depth:1000,700,500,300m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD800-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

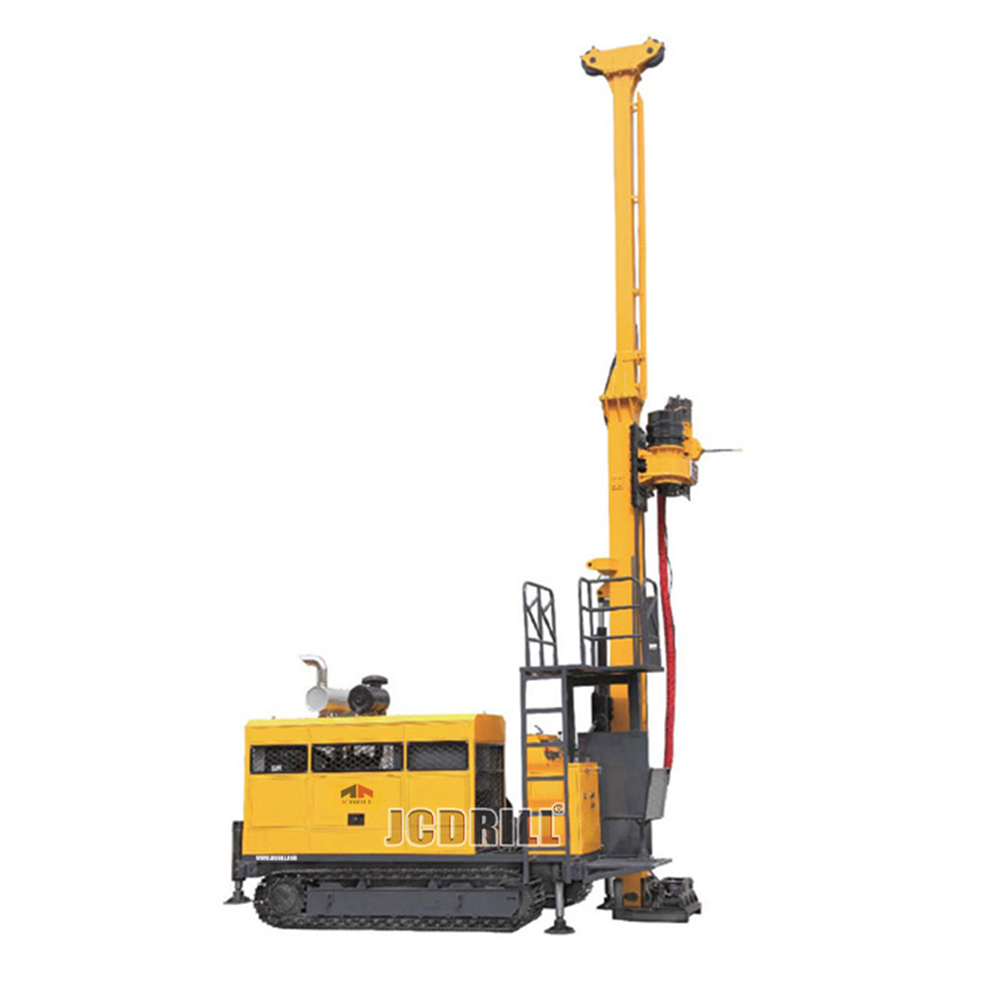

  • JCD1000 Full Hydraulic Diamond Core Drilling Rig

    JCD1000 Full Hydraulic Diamond Core Drilling Rig

    Hold Diameter: 121 mm

    Drilling Depth:1000 700 500 300 m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD1000-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

  • JCD1200 Core Drill Rig Hydraulic Borehole Drilling Equipment Geological Core Drilling Machine

    JCD1200 Core Drill Rig Hydraulic Borehole Drilling Equipment Geological Core Drilling Machine

    Hold Diameter: HTW-NTW-BTW

    Drilling Depth:1500 1200 500 m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD1200-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

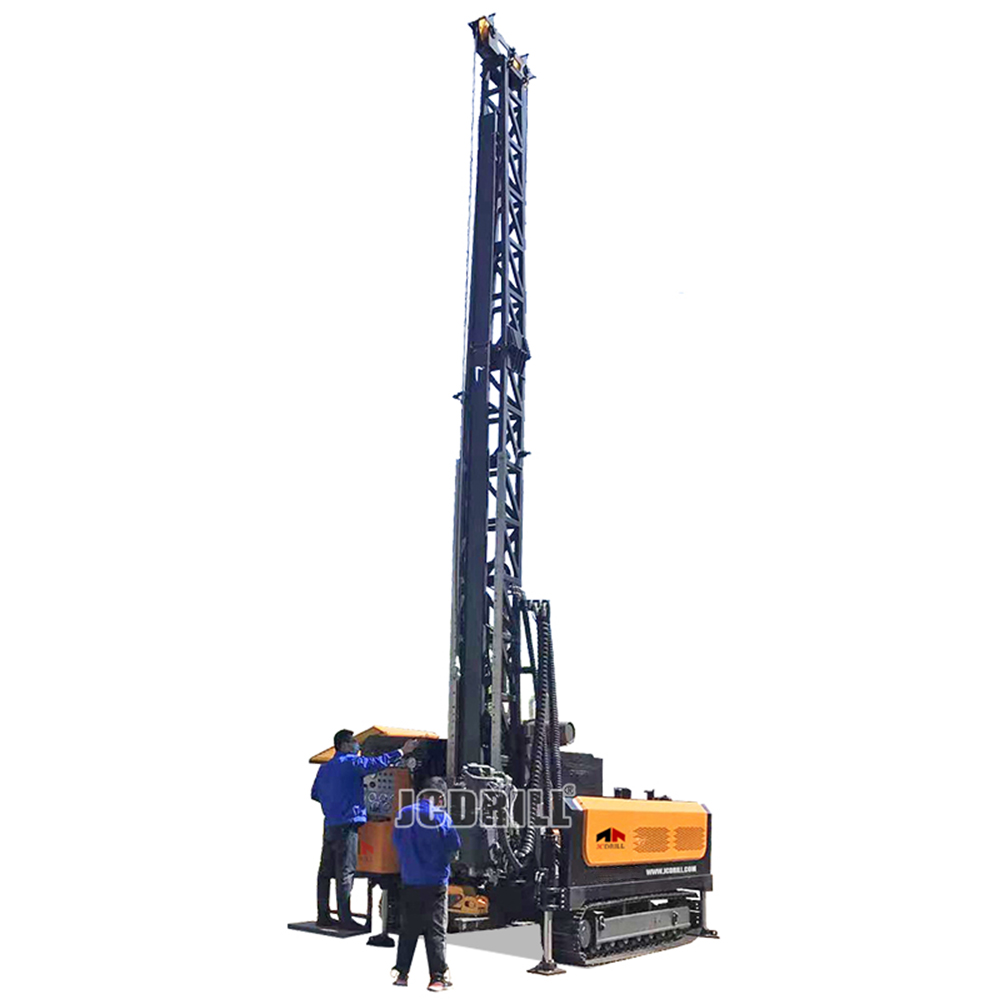

  • JCD1500 Mineral Exploration Drilling Rig Surface Core Drilling rig

    JCD1500 Mineral Exploration Drilling Rig Surface Core Drilling rig

    Drilling Diameter: NQ,HQ,PQ

    Max. Drilling Depth: 700,1000,1500m

    Drilling Method: Wireline Diamond Core Drilling


    >> Application

    JCD1500 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter.It is mainly suitable for diamond drilling with wire line coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc.
