Maximum torque: 15000Nm
Given progress:4200mm
Power type: Diesel engine
>> Application

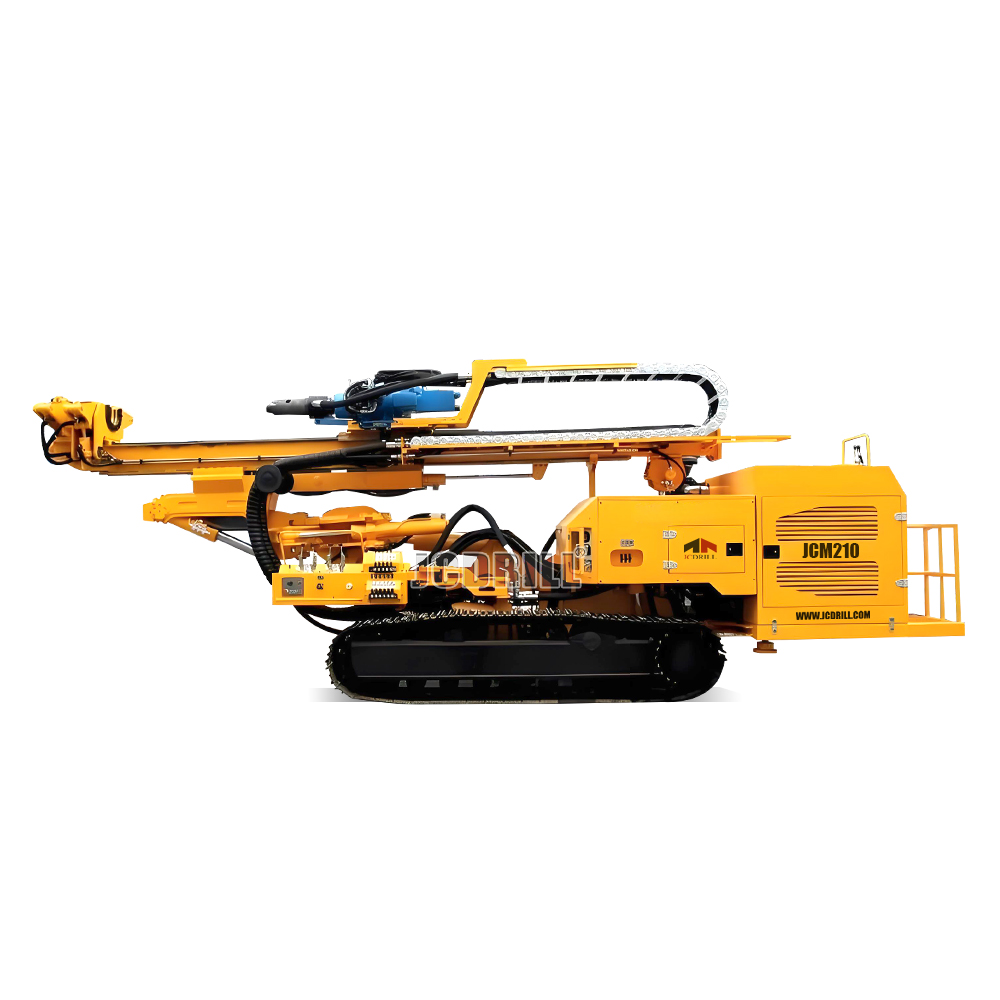

JCM210 full hydraulic anchor drilling rig has enhanced its power input and output power. It is more suitable for complex formation construction and has higher efficiency.
Partager
DESCRIPTION DU PRODUIT
>> Characteristics

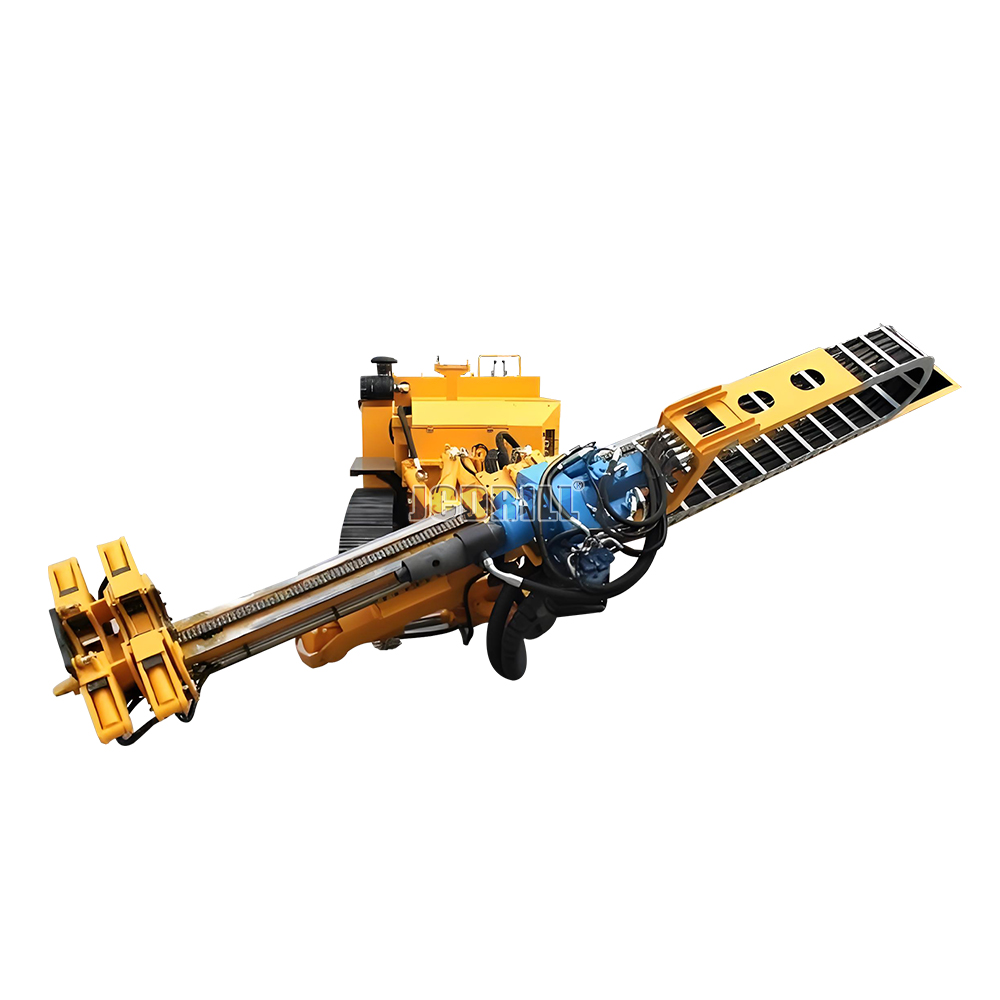

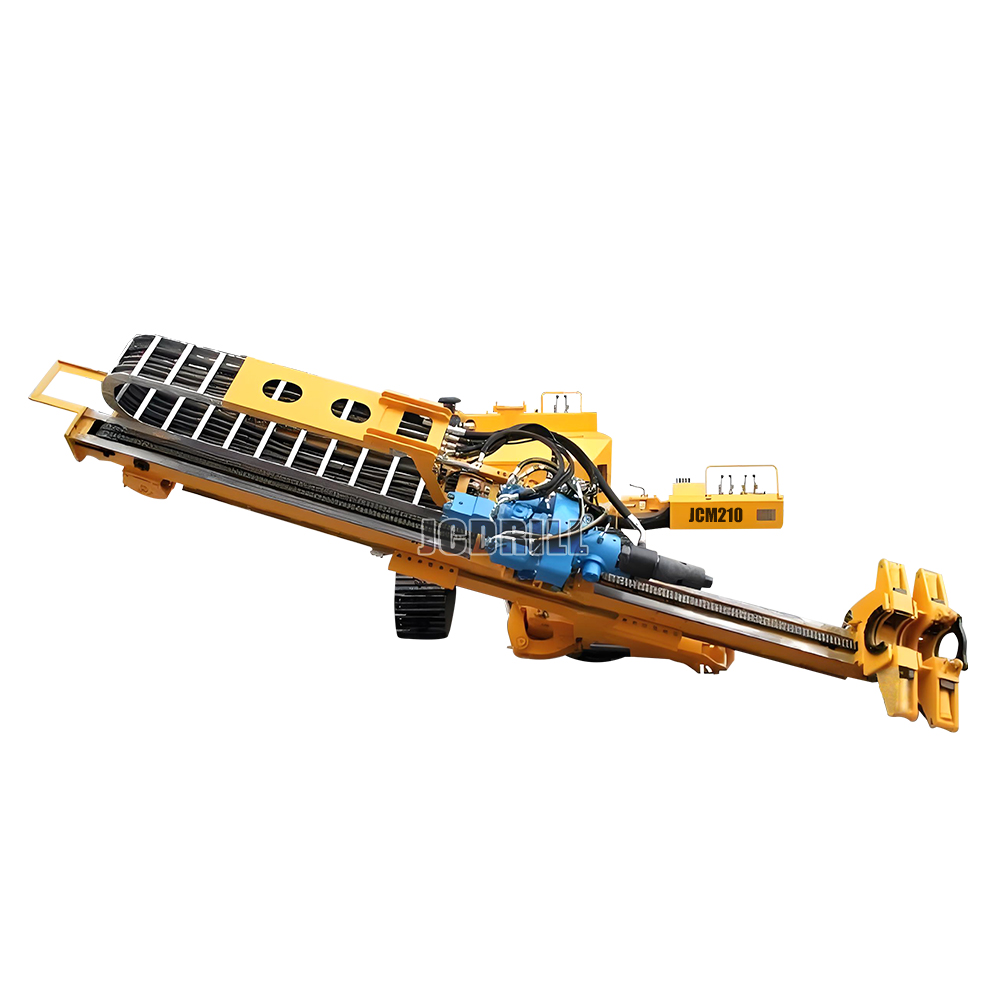

The JCM210 fully hydraulic anchoring drilling rig is a high-performance drilling rig specially designed for construction in complex strata. It adopts an enhanced power system, with an output power increase of 20%, and performs outstandingly in harsh geological conditions such as hard rock and pebble layers. It is applicable to high-standard engineering requirements such as deep hole anchoring and foundation treatment.
Super strong power: 154kW high-power engine, easily handling hard rock construction
Deep construction: 4200mm ultra-long operation range, meeting the requirements of deep hole operations
Precise control: Digital Angle monitoring system, drilling accuracy ±0.5°
Reliable and durable: Key components are reinforced in design, increasing service life by 40%
>> Specification
| JCM210 | |||
| Engine Model No. | QSB5.9-C210 | Percussion frequency(min¹) | 1200 |
| Emission level | III | Feed stroke(mm) | 4200 |
| Rated power(kW) | 154kW@2200rpm | Feed force(kN) | 55 |
| Caterpillar Band Model No. | LG-154 | Retraction force(kN) | 90 |
| Motor | Double-speed | Feed rate(m/min) | 0~18 |
| Tramming speed(km/h) | 1.7/2.5 | 0~55 | |
| Ground pressure(N/cm2) | 5.9 | Retraction rate(m/min) | 0~11 |
| Gradeability(°) | 25 | 0~33 | |
| Rotation rater/min(r/min) | 0~88、0~132 | Pattern | Hydro-cylinder + Chain |
| 0~44、0~66 | Clamprange(mm) | 60~219 | |
| Torque range at low gear(Nm) | 8600 | Maximum passing diameter(mm) | 260 |
| Torque range at high gear(Nm) | 15000 | Dimension(mm) | 8200x2280x2800 |
| Impact work(N·m) | 750 | Weight(T) | 14.5 |
